One of our customers from Indonesia wants to sieve white granulated sugar, capacity 70 tons/hour, 2 layers of screens, top layer 6~8 mesh, and bottom layer 50~60 mesh. According to the particle size distribution he provided and the previous screening situation, we chose two units of AD-1836-3S gyratory screen machines for them.
Some parameters about AD-1836-3S gyratory screen:
Installation: suspension type
Top screen width*length: 1800*3600mm
Layers of Screen: 3
Numbers of Discharge Ports: 3
Material: only the parts that contact raw material are stainless steel 304, others of the body are made of carbon steel
Power: 7.5KW
Model AD-1836-3S is the most cost-effective. Two units of AD-1836-3S gyratory screen can be shipped with a general 40 feet container. The biggest model we can make until now is AD-2050, say the top screen width*length is 2000*5000mm. But the main screen box width is about 2500mm, which is wider than the general container’s width limit 2300mm. So we have to use a special container – 40 feet Flat Rack Container to ship it, which will be more expensive in sea freight.

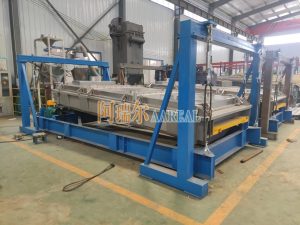

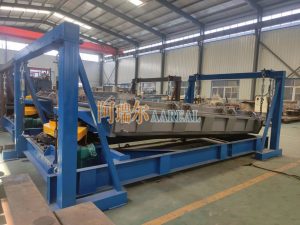

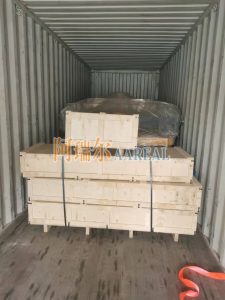

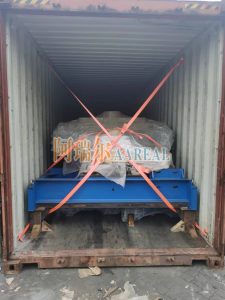

Loading Photos for AD-1836-3S Sugar Screening Machine:
