Technical Parameters

Our AD, AF and 2AFF models rectangular gyratory screen sifters are suitable for Fine Screening with large capacity and high accuracy. The accuracy is more than 90%. They are often used to screen quartz sand (silica sand), frac sand, ceramsite sand, petroleum coke, activated carbon, urea, plastic particles, sugar, salt, soybeans and other materials.

Model	AD model	AF model	2AFF model

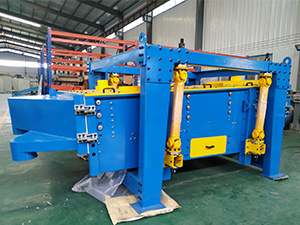

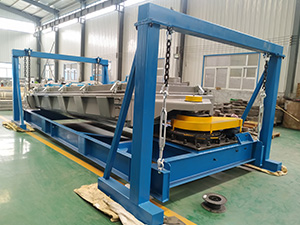

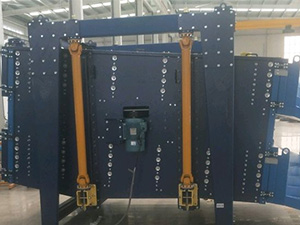

Ref. Photo
Moving Trajectory	circular motion at the feed end, elliptical motion at center, linear motion at discharge end	circular movement for the whole screen surface	circular movement for the whole screen surface
Screen Structure	√ Grommet screen, use clips to tension the screen surface. The screen surface is automatically tensioned, which is conducive to the material passing through the mesh	Hook screen, use hook plates on the left and right sides to tensify the screen. The screen surface may appear fluffy in the middle, which may affect the material through the screen	Hook screen, use hook plates on the left and right sides to tensify the screen. The screen surface may appear fluffy in the middle, which may affect the material through the screen
Screen Replacement	Similar to linear vibrating screen, have to take out the screen frame that needs to be replaced and all the screen frames of the upper screen layers	Just replace the screen of the layer that needs to be replaced	Just replace the screen of the layer that needs to be replaced
Mesh Deblinding System	Use silicone balls to clean the mesh. The ball deck usually uses woven wire mesh (light). And it can also use perforated sieve plate	Use silicone balls to clean the mesh. The ball deck usually uses perforated sieve plate (heavy). And it can also use woven wire mesh	Use silicone balls to clean the mesh. The ball deck uses perforated sieve plate (heavy). And it can also use woven wire mesh
Angle of Inclination	4~7 degrees	3~7 degrees	3~7 degrees
Capacity	depend on mesh size, screening accuracy, particle size distribution etc.	depend on mesh size, screening accuracy, particle size distribution etc.	larger than AD & AF model with the same screen area
Screening Accuracy	>90% (higher than AF model with the same screen area)	＞90%  (lower than AD model with the same screen area)	＞90% (higher than AF model single-channel type with the same screen area)
Layers & Size	Max. 4 layers of screen Max. Width 2000mm √ Max. Length 5000mm	Max. 5 layers of screen Max. Width 2000mm Max. Length 3600mm~4000mm	upper N layer + lower N layer (double-channel) Max. upper 5 layers + lower 5 layers Max. Width 2000mm Max. Length 3600mm~4000mm
